Intel Relocatable Object Module format, used by various 16/32-bit DOS based compilers and linkers, including 16-bit Microsoft compilers, Borland and Watcom compilers. More...

#include <omf.h>

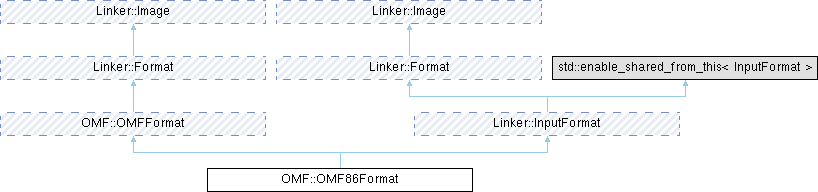

Inheritance diagram for OMF::OMF86Format:

Classes
class	AliasDefinitionRecord

class	BackpatchRecord

class	BaseSpecification
	Specification for the group and segment of some reference, and the frame if both are 0. More...

class	BlockDefinitionRecord
	A record that defines a block, used for BLKDEF records (Intel only) More...

class	BlockIndex
	A rich container for indexes referring to a BLKDEF record. More...

class	CommentRecord

class	DataBlock
	Represents a sequence of data, with optional repeated parts, used by RelocatableDataRecord, PhysicalDataRecord and LogicalDataRecord. More...

class	DebugSymbolsRecord
	Record to store debug symbols, used for DEBSYM (Intel only) More...

class	EmptyRecord
	A record type that has no contents, aside from the type, length and checksum, used for BLKEND. More...

class	EndRecord
	Record to signal termination of an overloay or block, used for ENDBLK (Intel only) More...

class	ExportDefinitionRecord

class	ExternalAssociationRecord

class	ExternalIndex
	A rich container for indexes referring to symbols in an EXTDEF, LEXTDEF, COMDEF, LCOMDEF, CEXTDEF record. More...

class	ExternalName
	An external name declaration, appearing in an EXTDEF, LEXTDEF, COMDEF, LCOMDEF or CEXTDEF record. More...

class	ExternalNamesDefinitionRecord
	A record defining several external or common symbols, used for EXTDEF, LEXTDEF, CEXTDEF, COMDEF and LCOMDEF. More...

class	FixupRecord
	A record containing relocation data, used for FIXUPP. More...

class	GroupDefinitionRecord
	A record that defines a segment group, used for GRPDEF records. More...

class	GroupIndex
	A rich container for indexes referring to a GRPDEF record. More...

class	ImportDefinitionRecord

class	IncrementalCompilationRecord

class	InitializedCommunalDataRecord

class	IntelLibraryDictionaryRecord
	All public symbols of all modules, used for LIBDIC (Intel only) More...

class	IntelLibraryHeaderRecord
	Library header record, used for LIBHED (Intel only) More...

class	IntelLibraryModuleLocationsRecord
	Library module offsets, used for LIBLOC (Intel only) More...

class	IntelLibraryModuleNamesRecord
	Library module names, used for LIBNAM (Intel only) More...

class	LibraryEndRecord

class	LibraryHeaderRecord

class	LineNumber
	Represents a line number, used by LineNumbersRecord and SymbolLineNumbersRecord. More...

class	LineNumbersRecord
	Stores as debugging data the line number information, used for LINNUM. More...

class	LinkerDirectivesRecord

class	ListOfNamesRecord
	A list of names to be referenced, used for LNAMES and LLNAMES records. More...

class	LogicalDataRecord
	Logical enumerated or iterated data, used for LEDATA and LIDATA. More...

class	Module
	Represents a single module inside the OMF file. More...

class	ModuleEndRecord
	Terminates a module, used for MODEND. More...

class	ModuleHeaderRecord
	A header record, used for THEADR and LHEADR. More...

class	NamedBackpatchRecord

class	NameIndex
	A rich container for indexes referring to a LNAME/LLNAME declaration. More...

class	NoSegmentPaddingRecord

class	OMFExtensionRecord

class	OMFVersionNumberRecord

class	OverlayDefinitionRecord
	A record that defines an overlay, used for OVLDEF records. More...

class	OverlayIndex
	A rich container for indexes referring to a OVLDEF record. More...

class	PhysicalDataRecord
	Physical enumerated or iterated data, used for PEDATA and PIDATA (Intel only) More...

class	Record
	Record type appearing specifically in an OMF86 file. More...

class	Reference
	Represents a reference for a relocation. More...

class	RegisterInitializationRecord
	Initialization values for registers, used for REGINT (Intel only) More...

class	RelocatableDataRecord
	Relocatable enumerated or iterated data, used for REDATA and RIDATA (Intel only) More...

class	RModuleHeaderRecord
	A header record for an R-Module, used for RHEADR (not part of TIS OMF) More...

class	SegmentDefinitionRecord
	A record that defines a segment, used for SEGDEF records. More...

class	SegmentIndex
	A rich container for indexes referring to a SEGDEF record. More...

class	SymbolDefinition
	Represents a symbol definition, used by SymbolDefinitionsRecord and DebugSymbolsRecord. More...

class	SymbolLineNumbersRecord

class	SymbolsDefinitionRecord
	A record that defines a symbol, used by PUBDEF, LPUBDEF, LOCSYM. More...

class	TypeDefinitionRecord
	A record that defines a data type, used for TYPDEF records. More...

class	TypeIndex
	A rich container for indexes referring to a TYPDEF record. More...

struct	UsesAbsolute
	Represents a MethodAbsolute value. More...

struct	UsesSource
	Represents a MethodSource value. More...

struct	UsesTarget
	Represents a MethodTarget value. More...

class	VendorExtensionRecord

Public Types
enum	omf_version_t { OMF_VERSION_INTEL_40 = 1 , OMF_VERSION_PHARLAP , OMF_VERSION_MICROSOFT , OMF_VERSION_IBM , OMF_VERSION_TIS_11 }
	Represents the various variants of the OMF file format, some of them are incompatible. More...

enum	{ MethodSegment = 0 , MethodGroup = 1 , MethodExternal = 2 , MethodFrame = 3 , MethodSource = 4 , MethodTarget = 5 , MethodAbsolute = 6 }
	Reference types for relocations, for targets and frames. More...

typedef uint16_t	index_t
	An index referring to an element or definition in the file, typically stored as 1 or 2 bytes.

typedef uint16_t	FrameNumber
	Represents a MethodFrame value.

Public Member Functions
void	ReadFile (Linker::Reader &rd) override
	Loads file into memory.

offset_t	WriteFile (Linker::Writer &wr) const override
	Stores data in memory to file.

void	Dump (Dumper::Dumper &dump) const override
	Display file contents in a nice manner.

void	GenerateModule (Linker::Module &module) const override
	Loads the information into a module object, a convenience method when there is a single module generated.

Public Member Functions inherited from Linker::Format
	Format (offset_t file_offset=0)

virtual void	Clear ()
	Resets all fields to their default values, deallocate memory.

offset_t	ImageSize () const override
	Retrieves size of stored data.

offset_t	WriteFile (Writer &wr, offset_t count, offset_t offset=0) const override
	Writes data of non-zero filled sections.

Public Member Functions inherited from Linker::Image
virtual std::shared_ptr< const ActualImage >	AsImage () const
	Retrieves a randomly accessible image.

std::shared_ptr< ActualImage >	AsImage ()
	Retrieves a randomly accessible image.

Public Member Functions inherited from Linker::InputFormat
virtual void	SetupOptions (std::shared_ptr< OutputFormat > format)
	Initializes the reader for linking purposes.

virtual void	ProduceModule (ModuleCollector &linker, Reader &rd, std::string file_name)
	Reads a file and loads the information into a module object.

virtual void	ProduceModule (Module &module, Reader &rd)
	Reads a file and loads the information into a module object, a convenience method when there is a single module generated.

virtual void	GenerateModule (ModuleCollector &linker, std::string file_name, bool is_library=false) const
	Loads the information into a module object.

virtual bool	FormatProvidesSegmentation () const
	Whether the format enables multiple x86 segments.

virtual bool	FormatRequiresDataStreamFix () const
	Whether the generated file might contain bugs that require fixing.

virtual bool	FormatProvidesResources () const
	Whether the format supports resources.

virtual bool	FormatProvidesLibraries () const
	Whether the format enables importing/exporting libraries.

Static Public Member Functions
static index_t	ReadIndex (Linker::Reader &rd)
	Parses a 1 or 2 byte index value.

static void	WriteIndex (ChecksumWriter &wr, index_t index)
	Produces a 1 or 2 byte index value.

static size_t	IndexSize (index_t index)
	Determines if the index value requires 1 or 2 bytes to store.

Static Public Member Functions inherited from OMF::OMFFormat
static std::string	ReadString (Linker::Reader &rd, size_t max_bytes=size_t(-1))
	Reads a string prefixed with a length byte.

static void	WriteString (ChecksumWriter &wr, std::string text)
	Writes a string prefixed with a length byte.

Public Attributes
omf_version_t	omf_version = OMF_VERSION_TIS_11
	The variant of the OMF format, needed to handle certain fields.

std::vector< Module >	modules
	List of modules appearing in an OMF file, typically only one for an object file.

uint16_t	page_size

Public Attributes inherited from OMF::OMFFormat
std::vector< std::shared_ptr< Record > >	records
	The ordered collection of records contained in the file.

Public Attributes inherited from Linker::Format
offset_t	file_offset

Static Public Attributes
static constexpr unsigned int	FlagIntel = 0x10
	Flag binary or'ed to certain values to mark Intel interpretation.

static constexpr unsigned int	FlagPharLap = 0x20
	Flag binary or'ed to certain values to mark Phar Lap interpretation.

static constexpr unsigned int	FlagTIS = 0x30
	Flag binary or'ed to certain values to mark TIS interpretation.

Detailed Description

Intel Relocatable Object Module format, used by various 16/32-bit DOS based compilers and linkers, including 16-bit Microsoft compilers, Borland and Watcom compilers.

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Reference types for relocations, for targets and frames.

Enumerator
MethodSegment	References a segment defined in a module, for either targets or frames.
MethodGroup	References a group defined in a module, for either targets or frames.
MethodExternal	References a external symbol declared in a module, for either targets or frames.
MethodFrame	References a physical paragraph address in a module, for either targets or frames.
MethodSource	References the frame of the relocation source, only for frames.
MethodTarget	References the frame of the relocation target, only for frames.
MethodAbsolute	No frame is provided, intended for Intel 8089, only the Intel version supports it, only for frames.

◆ omf_version_t

enum OMF::OMF86Format::omf_version_t

Represents the various variants of the OMF file format, some of them are incompatible.

Enumerator
OMF_VERSION_INTEL_40	The original Intel definition, version 4.0 (including any extensions that are compatible)
OMF_VERSION_PHARLAP	Phar Lap's extensions, mostly concerning 32-bit (partly incompatible with later versions)
OMF_VERSION_MICROSOFT	Format generated by Microsoft's tools (partly incompatible with other versions)
OMF_VERSION_IBM	Format generated by IBM's tools (partly incompatible with other versions)
OMF_VERSION_TIS_11	Version 1.1 produced and consolidated by the Tool Interface Standard.

Member Function Documentation

◆ Dump()

void OMF86Format::Dump ( Dumper::Dumper & dump ) const

overridevirtual

Display file contents in a nice manner.

Reimplemented from Linker::Format.

◆ GenerateModule()

void OMF86Format::GenerateModule ( Linker::Module & module ) const

overridevirtual

Loads the information into a module object, a convenience method when there is a single module generated.

Reimplemented from Linker::InputFormat.

◆ ReadFile()

void OMF86Format::ReadFile ( Linker::Reader & rd )

overridevirtual

Loads file into memory.

Implements Linker::Format.

◆ WriteFile()

offset_t OMF86Format::WriteFile ( Linker::Writer & wr ) const

overridevirtual

Stores data in memory to file.

Implements Linker::Format.

The documentation for this class was generated from the following files:

src/format/omf.h
src/format/omf.cc
