A record that defines a block, used for BLKDEF records (Intel only) More...

#include <omf.h>

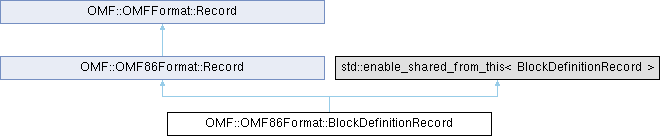

Inheritance diagram for OMF::OMF86Format::BlockDefinitionRecord:

Public Types
enum	block_type_t { NotProcedure = 0x00 , NearProcedure = 0x80 , FarProcedure = 0xC0 }
	Type of the block, if it is a procedure. More...

Public Types inherited from OMF::OMF86Format::Record
enum	record_type_t { RHEADR = 0x6E , REGINT = 0x70 , REDATA = 0x72 , RIDATA = 0x74 , OVLDEF = 0x76 , ENDREC = 0x78 , BLKDEF = 0x7A , BLKEND = 0x7C , DEBSYM = 0x7E , THEADR = 0x80 , LHEADR = 0x82 , PEDATA = 0x84 , PIDATA = 0x86 , COMENT = 0x88 , MODEND16 = 0x8A , MODEND = 0x8A , MODEND32 = 0x8B , EXTDEF = 0x8C , TYPDEF = 0x8E , PUBDEF16 = 0x90 , PUBDEF = 0x90 , PUBDEF32 = 0x91 , LOCSYM = 0x92 , LINNUM = 0x94 , LNAMES = 0x96 , SEGDEF = 0x98 , GRPDEF = 0x9A , FIXUPP16 = 0x9C , FIXUPP = 0x9C , FIXUPP32 = 0x9D , LEDATA16 = 0xA0 , LEDATA = 0xA0 , LEDATA32 = 0xA1 , LIDATA16 = 0xA2 , LIDATA = 0xA2 , LIDATA32 = 0xA3 , LIBHED = 0xA4 , LIBNAM = 0xA6 , LIBLOC = 0xA8 , LIBDIC = 0xAA , COMDEF = 0xB0 , BAKPAT16 = 0xB2 , BAKPAT = 0xB2 , BAKPAT32 = 0xB3 , LEXTDEF16 = 0xB4 , LEXTDEF = 0xB4 , LEXTDEF32 = 0xB5 , LPUBDEF16 = 0xB6 , LPUBDEF = 0xB6 , LPUBDEF32 = 0xB7 , LCOMDEF = 0xB8 , CEXTDEF = 0xBC , COMDAT16 = 0xC2 , COMDAT = 0xC2 , COMDAT32 = 0xC3 , LINSYM16 = 0xC4 , LINSYM = 0xC4 , LINSYM32 = 0xC5 , ALIAS = 0xC6 , NBKPAT16 = 0xC8 , NBKPAT = 0xC8 , NBKPAT32 = 0xC9 , LLNAMES = 0xCA , VERNUM = 0xCC , VENDEXT = 0xCE , LibraryHeader = 0xF0 , LibraryEnd = 0xF1 }
	The recognized record types in an OMF86 file.

Public Member Functions
	BlockDefinitionRecord (record_type_t record_type)

void	ReadRecordContents (OMF86Format *omf, Linker::Reader &rd) override
	Reads the record contents, except for the type, length and checksum.

uint16_t	GetRecordSize (OMF86Format *omf) const override
	Calculates the required bytes to write the record, might be less than record_length.

void	WriteRecordContents (OMF86Format *omf, ChecksumWriter &wr) const override
	Writes the record contents, except for the type, length and checksum.

void	CalculateValues (OMF86Format omf, Module mod) override
	Updates all fields that will be used for writing an OMF module, should be called before output.

void	ResolveReferences (OMF86Format omf, Module mod) override
	Resolves any fields read from an OMF module, should be called after inpnut.

void	ReadRecordContents (OMFFormat *omf, Linker::Reader &rd) override
	Converts omf to OMF86Format and calls the other implementation of ReadRecordContents.

virtual void	ReadRecordContents (OMF86Format *omf, Linker::Reader &rd)=0
	Reads the record contents, except for the type, length and checksum.

uint16_t	GetRecordSize (OMFFormat *omf) const override
	Converts omf to OMF86Format and calls the other implementation of GetRecordSize.

virtual uint16_t	GetRecordSize (OMF86Format *omf) const=0
	Calculates the required bytes to write the record, might be less than record_length.

void	WriteRecordContents (OMFFormat *omf, ChecksumWriter &wr) const override
	Converts omf to OMF86Format and calls the other implementation of WriteRecordContents.

virtual void	WriteRecordContents (OMF86Format *omf, ChecksumWriter &wr) const=0
	Writes the record contents, except for the type, length and checksum.

Public Member Functions inherited from OMF::OMF86Format::Record
	Record (record_type_t record_type)

void	ReadRecordContents (OMFFormat *omf, Linker::Reader &rd) override
	Converts omf to OMF86Format and calls the other implementation of ReadRecordContents.

uint16_t	GetRecordSize (OMFFormat *omf) const override
	Converts omf to OMF86Format and calls the other implementation of GetRecordSize.

void	WriteRecordContents (OMFFormat *omf, ChecksumWriter &wr) const override
	Converts omf to OMF86Format and calls the other implementation of WriteRecordContents.

bool	Is32Bit (OMF86Format *omf) const
	Records are 32-bit if the least significant bit of their record type is set.

size_t	GetOffsetSize (OMF86Format *omf) const
	The number of bytes in an offset appearing inside the record, 2 for 16-bit records, 4 for 32-bit records.

Public Member Functions inherited from OMF::OMFFormat::Record
	Record (uint8_t record_type=0)

virtual void	WriteRecord (OMFFormat *omf, Linker::Writer &wr) const
	Writes the full record.

Public Attributes
BaseSpecification	base
	The first byte of the segment containing the block.

std::string	name
	The name of the block or empty.

uint16_t	offset
	Offset to the first byte of the block.

uint16_t	length
	Length of the block.

block_type_t	procedure
	Whether this block is a procedure, and whether it is a near or far procedure.

uint16_t	return_address_offset
	Offset, relative to the frame pointer (BP), to the return address of the procedure in the calling frame on the stack.

TypeIndex	type
	Type of block or procedure, only used if name != "".

Public Attributes inherited from OMF::OMFFormat::Record
offset_t	record_offset
	Offset of record within the file.

uint16_t	record_length
	Length of record body file, excluding the type byte and 2-byte length field.

uint8_t	record_type
	A byte value identifying the type of record.

Additional Inherited Members
Static Public Member Functions inherited from OMF::OMF86Format::Record
static std::shared_ptr< OMFFormat::Record >	ReadRecord (OMF86Format *omf, Linker::Reader &rd)
	Parses and returns an instance of the next record.

Detailed Description

A record that defines a block, used for BLKDEF records (Intel only)

Member Enumeration Documentation

◆ block_type_t

enum OMF::OMF86Format::BlockDefinitionRecord::block_type_t

Type of the block, if it is a procedure.

Enumerator
NotProcedure	Block is not a procedure.
NearProcedure	Block is a near procedure.
FarProcedure	Block is a far procedure.

Member Function Documentation

◆ CalculateValues()

void OMF86Format::BlockDefinitionRecord::CalculateValues	(	OMF86Format *	omf,
		Module *	mod )

overridevirtual

Updates all fields that will be used for writing an OMF module, should be called before output.

Reimplemented from OMF::OMF86Format::Record.

◆ GetRecordSize() [1/3]

uint16_t OMF86Format::BlockDefinitionRecord::GetRecordSize ( OMF86Format * omf ) const

overridevirtual

Calculates the required bytes to write the record, might be less than record_length.

Implements OMF::OMF86Format::Record.

◆ GetRecordSize() [2/3]

virtual uint16_t OMF::OMF86Format::Record::GetRecordSize ( OMF86Format * omf ) const

virtual

Calculates the required bytes to write the record, might be less than record_length.

Implements OMF::OMF86Format::Record.

◆ GetRecordSize() [3/3]

uint16_t OMF86Format::Record::GetRecordSize ( OMFFormat * omf ) const

overridevirtual

Converts omf to OMF86Format and calls the other implementation of GetRecordSize.

Implements OMF::OMFFormat::Record.

◆ ReadRecordContents() [1/3]

void OMF86Format::BlockDefinitionRecord::ReadRecordContents	(	OMF86Format *	omf,
		Linker::Reader &	rd )

overridevirtual

Reads the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ ReadRecordContents() [2/3]

virtual void OMF::OMF86Format::Record::ReadRecordContents	(	OMF86Format *	omf,
		Linker::Reader &	rd )

virtual

Reads the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ ReadRecordContents() [3/3]

void OMF86Format::Record::ReadRecordContents	(	OMFFormat *	omf,
		Linker::Reader &	rd )

overridevirtual

Converts omf to OMF86Format and calls the other implementation of ReadRecordContents.

Implements OMF::OMFFormat::Record.

◆ ResolveReferences()

void OMF86Format::BlockDefinitionRecord::ResolveReferences	(	OMF86Format *	omf,
		Module *	mod )

overridevirtual

Resolves any fields read from an OMF module, should be called after inpnut.

Reimplemented from OMF::OMF86Format::Record.

◆ WriteRecordContents() [1/3]

void OMF86Format::BlockDefinitionRecord::WriteRecordContents	(	OMF86Format *	omf,
		ChecksumWriter &	wr ) const

overridevirtual

Writes the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ WriteRecordContents() [2/3]

virtual void OMF::OMF86Format::Record::WriteRecordContents	(	OMF86Format *	omf,
		ChecksumWriter &	wr ) const

virtual

Writes the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ WriteRecordContents() [3/3]

void OMF86Format::Record::WriteRecordContents	(	OMFFormat *	omf,
		ChecksumWriter &	wr ) const

overridevirtual

Converts omf to OMF86Format and calls the other implementation of WriteRecordContents.

Implements OMF::OMFFormat::Record.

The documentation for this class was generated from the following files:

src/format/omf.h
src/format/omf.cc
