A record that defines a segment, used for SEGDEF records. More...

#include <omf.h>

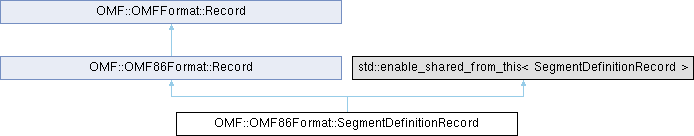

Inheritance diagram for OMF::OMF86Format::SegmentDefinitionRecord:

Classes
class	LoadTimeLocatable
	Additional data for LTL segment, not part of TIS. More...

struct	Relocatable
	Type representing a relocatable segment. More...

Public Types
enum	alignment_t : uint8_t { AlignAbsolute = 0 , Align1 = 1 , Align2 = 2 , Align16 = 3 , AlignPage = 4 , AlignLTL16 = 6 , Align256 = FlagIntel \| AlignPage , Align4096 = FlagTIS \| AlignPage , AlignUnnamed = FlagIntel \| 5 , Align32 = FlagTIS \| 5 }
	Alignment type for a segment. More...

enum	combination_t : uint8_t { Combination_Private = 0 , Combination_Merge_Highest = 1 , Combination_Append = 2 , Combination_Public = Combination_Append , Combination_Join_Low = 4 , Combination_Public4 = FlagTIS \| 4 , Combination_Join_High = FlagIntel \| 5 , Combination_Stack = FlagTIS \| 5 , Combination_Merge_Low = FlagIntel \| 6 , Combination_Common = FlagTIS \| 6 , Combination_Merge_High = 7 , Combination_Public7 = FlagTIS \| 4 }
	Describes how two segments of the same name and class name should be combined. More...

enum	access_t { AccessReadOnly = 0 , AccessExecuteOnly = 1 , AccessExecuteRead = 2 , AccessReadWrite = 3 }
	Represents an additional field used by Phar Lap.

typedef uint32_t	Absolute
	Additional data used for absolute segments, type 0 or 5 if Intel version is used.

Public Types inherited from OMF::OMF86Format::Record
enum	record_type_t { RHEADR = 0x6E , REGINT = 0x70 , REDATA = 0x72 , RIDATA = 0x74 , OVLDEF = 0x76 , ENDREC = 0x78 , BLKDEF = 0x7A , BLKEND = 0x7C , DEBSYM = 0x7E , THEADR = 0x80 , LHEADR = 0x82 , PEDATA = 0x84 , PIDATA = 0x86 , COMENT = 0x88 , MODEND16 = 0x8A , MODEND = 0x8A , MODEND32 = 0x8B , EXTDEF = 0x8C , TYPDEF = 0x8E , PUBDEF16 = 0x90 , PUBDEF = 0x90 , PUBDEF32 = 0x91 , LOCSYM = 0x92 , LINNUM = 0x94 , LNAMES = 0x96 , SEGDEF = 0x98 , GRPDEF = 0x9A , FIXUPP16 = 0x9C , FIXUPP = 0x9C , FIXUPP32 = 0x9D , LEDATA16 = 0xA0 , LEDATA = 0xA0 , LEDATA32 = 0xA1 , LIDATA16 = 0xA2 , LIDATA = 0xA2 , LIDATA32 = 0xA3 , LIBHED = 0xA4 , LIBNAM = 0xA6 , LIBLOC = 0xA8 , LIBDIC = 0xAA , COMDEF = 0xB0 , BAKPAT16 = 0xB2 , BAKPAT = 0xB2 , BAKPAT32 = 0xB3 , LEXTDEF16 = 0xB4 , LEXTDEF = 0xB4 , LEXTDEF32 = 0xB5 , LPUBDEF16 = 0xB6 , LPUBDEF = 0xB6 , LPUBDEF32 = 0xB7 , LCOMDEF = 0xB8 , CEXTDEF = 0xBC , COMDAT16 = 0xC2 , COMDAT = 0xC2 , COMDAT32 = 0xC3 , LINSYM16 = 0xC4 , LINSYM = 0xC4 , LINSYM32 = 0xC5 , ALIAS = 0xC6 , NBKPAT16 = 0xC8 , NBKPAT = 0xC8 , NBKPAT32 = 0xC9 , LLNAMES = 0xCA , VERNUM = 0xCC , VENDEXT = 0xCE , LibraryHeader = 0xF0 , LibraryEnd = 0xF1 }
	The recognized record types in an OMF86 file.

Public Member Functions
	SegmentDefinitionRecord (record_type_t record_type)

void	ReadRecordContents (OMF86Format *omf, Linker::Reader &rd) override
	Reads the record contents, except for the type, length and checksum.

uint16_t	GetRecordSize (OMF86Format *omf) const override
	Calculates the required bytes to write the record, might be less than record_length.

void	WriteRecordContents (OMF86Format *omf, ChecksumWriter &wr) const override
	Writes the record contents, except for the type, length and checksum.

void	CalculateValues (OMF86Format omf, Module mod) override
	Updates all fields that will be used for writing an OMF module, should be called before output.

void	ResolveReferences (OMF86Format omf, Module mod) override
	Resolves any fields read from an OMF module, should be called after inpnut.

void	ReadRecordContents (OMFFormat *omf, Linker::Reader &rd) override
	Converts omf to OMF86Format and calls the other implementation of ReadRecordContents.

virtual void	ReadRecordContents (OMF86Format *omf, Linker::Reader &rd)=0
	Reads the record contents, except for the type, length and checksum.

uint16_t	GetRecordSize (OMFFormat *omf) const override
	Converts omf to OMF86Format and calls the other implementation of GetRecordSize.

virtual uint16_t	GetRecordSize (OMF86Format *omf) const=0
	Calculates the required bytes to write the record, might be less than record_length.

void	WriteRecordContents (OMFFormat *omf, ChecksumWriter &wr) const override
	Converts omf to OMF86Format and calls the other implementation of WriteRecordContents.

virtual void	WriteRecordContents (OMF86Format *omf, ChecksumWriter &wr) const=0
	Writes the record contents, except for the type, length and checksum.

Public Member Functions inherited from OMF::OMF86Format::Record
	Record (record_type_t record_type)

bool	Is32Bit (OMF86Format *omf) const
	Records are 32-bit if the least significant bit of their record type is set.

size_t	GetOffsetSize (OMF86Format *omf) const
	The number of bytes in an offset appearing inside the record, 2 for 16-bit records, 4 for 32-bit records.

Public Member Functions inherited from OMF::OMFFormat::Record
	Record (uint8_t record_type=0)

virtual void	WriteRecord (OMFFormat *omf, Linker::Writer &wr) const
	Writes the full record.

Public Attributes
uint64_t	segment_length
	The length of the segment (maximum 0x100000000)

alignment_t	alignment
	Alignment of segment.

std::variant< Relocatable, Absolute, LoadTimeLocatable >	location = Relocatable{}
	Information on where the segment should be placed at runtime.

combination_t	combination
	How segments of the same type should be combined.

bool	page_resident = false
	Set if the segment should not cross a 256 byte page boundary (only Intel)

bool	use32 = false
	Set if the USE32 directive is used for the segment. The field appears in different places for Phar Lap and TIS.

NameIndex	segment_name
	The name of the segment (not used for AlignUnnamed)

NameIndex	class_name
	The name of the segment's class (not used for AlignUnnamed)

NameIndex	overlay_name
	The name of the overlay the segment appears in (not used for AlignUnnamed)

std::optional< access_t >	access
	Represents the value of a Phar Lap specific extension word.

Public Attributes inherited from OMF::OMFFormat::Record
offset_t	record_offset
	Offset of record within the file.

uint16_t	record_length
	Length of record body file, excluding the type byte and 2-byte length field.

uint8_t	record_type
	A byte value identifying the type of record.

Additional Inherited Members
Static Public Member Functions inherited from OMF::OMF86Format::Record
static std::shared_ptr< OMFFormat::Record >	ReadRecord (OMF86Format *omf, Linker::Reader &rd)
	Parses and returns an instance of the next record.

Detailed Description

A record that defines a segment, used for SEGDEF records.

Member Enumeration Documentation

◆ alignment_t

enum OMF::OMF86Format::SegmentDefinitionRecord::alignment_t : uint8_t

Alignment type for a segment.

Enumerator
AlignAbsolute	Absolute segment, its position in memory is fixed.
Align1	Relocatable segment, byte aligned.
Align2	Relocatable segment, word (2-byte) aligned.
Align16	Relocatable segment, paragraph (16-byte) aligned.
AlignPage	Relocatable segment, page aligned, exact size depends on OMF version.
AlignLTL16	Load-time locatable or, if not part of a group, paragraph (16-byte) aligned (Intel only)
Align256	Relocatable segment, page (256-byte) aligned, as defined by Intel.
Align4096	Relocatable segment, page (4096-byte) aligned, as used by IBM.
AlignUnnamed	Unnamed absolute portion of the memory address space, type 5 as defined by Intel.
Align32	Relocatable segment, double word (4-byte) aligned, type 5 as defined by TIS.

◆ combination_t

enum OMF::OMF86Format::SegmentDefinitionRecord::combination_t : uint8_t

Describes how two segments of the same name and class name should be combined.

Enumerator
Combination_Private	Do not combine segments, also known as Private.
Combination_Merge_Highest	Like Combination_Merge_High, but also places the segment above all other segments (not used by TIS)
Combination_Append	Appends the segments, also known as Public.
Combination_Join_Low	Merges the two segments at their lowest address, adds their sizes (Intel interpretation)
Combination_Join_High	Merges the two segments at their highest address, adds their sizes (Intel interpretation)
Combination_Stack	Same as Public, but for stack segments.
Combination_Merge_Low	Merges the two segments at their lowest address, their size is the maximum (Intel interpretation)
Combination_Merge_High	Merges the two segments at their highest address, their size is the maximum (Intel interpretation)

Member Function Documentation

◆ CalculateValues()

void OMF86Format::SegmentDefinitionRecord::CalculateValues	(	OMF86Format *	omf,
		Module *	mod )

overridevirtual

Updates all fields that will be used for writing an OMF module, should be called before output.

Reimplemented from OMF::OMF86Format::Record.

◆ GetRecordSize() [1/3]

uint16_t OMF86Format::SegmentDefinitionRecord::GetRecordSize ( OMF86Format * omf ) const

overridevirtual

Calculates the required bytes to write the record, might be less than record_length.

Implements OMF::OMF86Format::Record.

◆ GetRecordSize() [2/3]

virtual uint16_t OMF::OMF86Format::Record::GetRecordSize ( OMF86Format * omf ) const

virtual

Calculates the required bytes to write the record, might be less than record_length.

Implements OMF::OMF86Format::Record.

◆ GetRecordSize() [3/3]

uint16_t OMF86Format::Record::GetRecordSize ( OMFFormat * omf ) const

overridevirtual

Converts omf to OMF86Format and calls the other implementation of GetRecordSize.

Reimplemented from OMF::OMF86Format::Record.

◆ ReadRecordContents() [1/3]

void OMF86Format::SegmentDefinitionRecord::ReadRecordContents	(	OMF86Format *	omf,
		Linker::Reader &	rd )

overridevirtual

Reads the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ ReadRecordContents() [2/3]

virtual void OMF::OMF86Format::Record::ReadRecordContents	(	OMF86Format *	omf,
		Linker::Reader &	rd )

virtual

Reads the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ ReadRecordContents() [3/3]

void OMF86Format::Record::ReadRecordContents	(	OMFFormat *	omf,
		Linker::Reader &	rd )

overridevirtual

Converts omf to OMF86Format and calls the other implementation of ReadRecordContents.

Reimplemented from OMF::OMF86Format::Record.

◆ ResolveReferences()

void OMF86Format::SegmentDefinitionRecord::ResolveReferences	(	OMF86Format *	omf,
		Module *	mod )

overridevirtual

Resolves any fields read from an OMF module, should be called after inpnut.

Reimplemented from OMF::OMF86Format::Record.

◆ WriteRecordContents() [1/3]

void OMF86Format::SegmentDefinitionRecord::WriteRecordContents	(	OMF86Format *	omf,
		ChecksumWriter &	wr ) const

overridevirtual

Writes the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ WriteRecordContents() [2/3]

virtual void OMF::OMF86Format::Record::WriteRecordContents	(	OMF86Format *	omf,
		ChecksumWriter &	wr ) const

virtual

Writes the record contents, except for the type, length and checksum.

Implements OMF::OMF86Format::Record.

◆ WriteRecordContents() [3/3]

void OMF86Format::Record::WriteRecordContents	(	OMFFormat *	omf,
		ChecksumWriter &	wr ) const

overridevirtual

Converts omf to OMF86Format and calls the other implementation of WriteRecordContents.

Reimplemented from OMF::OMF86Format::Record.

The documentation for this class was generated from the following files:

src/format/omf.h
src/format/omf.cc
