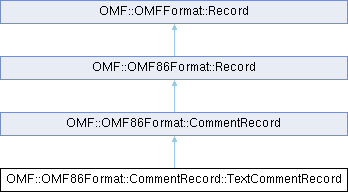

Inheritance diagram for OMF::OMF86Format::CommentRecord::TextCommentRecord:

Public Member Functions
	TextCommentRecord (comment_class_t comment_class=comment_class_t(0))

void	ReadComment (OMF86Format omf, Module mod, Linker::Reader &rd, uint16_t comment_length) override

uint16_t	GetCommentSize (OMF86Format omf, Module mod) const override

void	WriteComment (OMF86Format omf, Module mod, ChecksumWriter &wr) const override

Public Member Functions inherited from OMF::OMF86Format::CommentRecord
	CommentRecord (comment_class_t comment_class=comment_class_t(0))

void	ReadRecordContents (OMF86Format omf, Module mod, Linker::Reader &rd) override

uint16_t	GetRecordSize (OMF86Format omf, Module mod) const override

void	WriteRecordContents (OMF86Format omf, Module mod, ChecksumWriter &wr) const override

Public Member Functions inherited from OMF::OMFFormat::Record< RecordTypeByte, FormatType, ModuleType >
	Record (RecordTypeByte record_type=RecordTypeByte(0))

offset_t	RecordEnd () const

virtual void	ReadRecordContents (FormatType omf, ModuleType mod, Linker::Reader &rd)=0
	Reads the record contents, except for the type, length and checksum.

virtual uint16_t	GetRecordSize (FormatType omf, ModuleType mod) const =0
	Calculates the required bytes to write the record, might be less than record_length.

virtual void	WriteRecordContents (FormatType omf, ModuleType mod, ChecksumWriter &wr) const =0
	Writes the record contents, except for the type, length and checksum.

virtual void	WriteRecord (FormatType omf, ModuleType mod, Linker::Writer &wr) const
	Writes the full record.

virtual void	CalculateValues (FormatType omf, ModuleType mod)
	Updates all fields that will be used for writing an OMF module, should be called before output.

virtual void	ResolveReferences (FormatType omf, ModuleType mod)
	Resolves any fields read from an OMF module, should be called after inpnut.

virtual void	DumpAddFields (Dumper::Dumper &dump, Dumper::Region &region, const FormatType omf, const ModuleType mod, size_t record_index) const

virtual void	Dump (Dumper::Dumper &dump, const FormatType omf, const ModuleType mod, size_t record_index) const

bool	Is32Bit (FormatType *omf) const
	Records are 32-bit if the least significant bit of their record type is set (only meaningful for OMF86Format)

size_t	GetOffsetSize (FormatType *omf) const
	The number of bytes in an offset appearing inside the record, 2 for 16-bit records, 4 for 32-bit records (only meaningful for OMF86Format)

Public Attributes
std::string	name

Public Attributes inherited from OMF::OMF86Format::CommentRecord
bool	no_purge

bool	no_list

comment_class_t	comment_class

Public Attributes inherited from OMF::OMFFormat::Record< RecordTypeByte, FormatType, ModuleType >
offset_t	record_offset
	Offset of record within the file.

uint16_t	record_length
	Length of record body file, excluding the type byte and 2-byte length field.

RecordTypeByte	record_type
	A byte value identifying the type of record.

Additional Inherited Members
Public Types inherited from OMF::OMF86Format::CommentRecord
enum	comment_class_t : uint8_t { Translator = 0x00 , IntelCopyright = 0x01 , LibrarySpecifier = 0x81 , MSDOSVersion = 0x9C , MemoryModel = 0x9D , DOSSEG = 0x9E , DefaultLibrarySearchName = 0x9F , OMFExtension = 0xA0 , NewOMFExtension = 0xA1 , LinkPassSeparator = 0xA2 , LIBMOD = 0xA3 , EXESTR = 0xA4 , INCERR = 0xA6 , NOPAD = 0xA7 , WKEXT = 0xA8 , LZEXT = 0xA9 , Comment = 0xDA , Compiler = 0xDB , Date = 0xDC , TimeStamp = 0xDD , User = 0xDF , DependencyFile = 0xE9 , CommandLine = 0xFF }

Static Public Member Functions inherited from OMF::OMF86Format::CommentRecord
static std::shared_ptr< CommentRecord >	ReadCommentRecord (OMF86Format omf, Module mod, Linker::Reader &rd, uint16_t record_length)

Member Function Documentation

◆ GetCommentSize()

uint16_t OMF86Format::CommentRecord::TextCommentRecord::GetCommentSize	(	OMF86Format *	omf,
		Module *	mod ) const

overridevirtual

Implements OMF::OMF86Format::CommentRecord.

◆ ReadComment()

void OMF86Format::CommentRecord::TextCommentRecord::ReadComment	(	OMF86Format *	omf,
		Module *	mod,
		Linker::Reader &	rd,
		uint16_t	comment_length )

overridevirtual

Implements OMF::OMF86Format::CommentRecord.

◆ WriteComment()

void OMF86Format::CommentRecord::TextCommentRecord::WriteComment	(	OMF86Format *	omf,
		Module *	mod,
		ChecksumWriter &	wr ) const

overridevirtual

Implements OMF::OMF86Format::CommentRecord.

The documentation for this class was generated from the following files:

src/format/omf.h
src/format/omf.cc
