Intel Relocatable Object Module for the Intel MCS-96. More...

#include <omf.h>

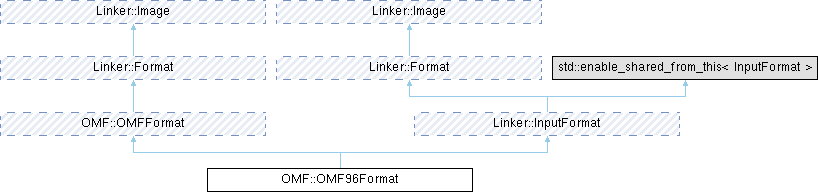

Inheritance diagram for OMF::OMF96Format:

Classes
class	BlockDefinitionRecord

class	ExternalDefinition

class	ExternalDefinitionsRecord

class	Module

class	ModuleAncestorRecord

class	ModuleEndRecord

class	ModuleHeaderRecord

class	RelocationRecord

class	SegmentDefinition

class	SegmentDefinitionsRecord

class	SymbolDefinition

class	SymbolDefinitionsRecord

class	TypeDefinitionRecord

class	TypeIndex

Public Types
enum	record_type_t : uint8_t { ModuleHeader = OMF80Format::ModuleHeader , ModuleEnd = OMF80Format::ModuleEnd , Content = OMF80Format::Content , LineNumbers = OMF80Format::LineNumbers , BlockDefinition = 0x0A , BlockEnd = 0x0C , EndOfFile = OMF80Format::EndOfFile , ModuleAncestor = OMF80Format::ModuleAncestor , LocalSymbols = OMF80Format::LocalSymbols , TypeDefinition = 0x14 , PublicDefinitions = OMF80Format::PublicDefinitions , ExternalDefinitions = OMF80Format::ExternalDefinitions , SegmentDefinitions = 0x20 , Relocations = OMF80Format::Relocations , LibraryModuleLocations = OMF80Format::LibraryModuleLocations , LibraryModuleNames = OMF80Format::LibraryModuleNames , LibraryDictionary = OMF80Format::LibraryDictionary , LibraryHeader = 0x2E }

enum	alignment_t { AlignByte = 0 , AlignWord = 1 , AlignLong = 2 }

typedef uint16_t	index_t

using	Record = OMFFormat::Record< record_type_t, OMF96Format, Module >

using	UnknownRecord = OMFFormat::UnknownRecord< record_type_t, OMF96Format, Module >

using	EmptyRecord = OMFFormat::EmptyRecord< record_type_t, OMF96Format, Module >

using	ContentRecord = OMFFormat::ContentRecord< record_type_t, OMF96Format, Module >

using	LineNumbersRecord = OMFFormat::LineNumbersRecord< record_type_t, OMF96Format, Module >

using	LibraryHeaderRecord = OMFFormat::LibraryHeaderRecord< record_type_t, OMF96Format, Module >

using	LibraryModuleNamesRecord = OMFFormat::LibraryModuleNamesRecord< record_type_t, OMF96Format, Module >

using	LibraryModuleLocationsRecord = OMFFormat::LibraryModuleLocationsRecord< record_type_t, OMF96Format, Module >

using	LibraryDictionaryRecord = OMFFormat::LibraryDictionaryRecord< record_type_t, OMF96Format, Module >

typedef uint8_t	segment_id_t

Public Types inherited from OMF::OMFFormat
typedef uint16_t	index_t
	An index referring to an element or definition in the file, typically stored as 1 or 2 bytes, used for OMF86 and OMF96.

Public Member Functions
std::shared_ptr< Record >	ReadRecord (const std::shared_ptr< Linker::Reader > &rd)
	Parses and returns an instance of the next record.

void	ReadFile (const std::shared_ptr< Linker::Reader > &rd) override
	Loads file into memory.

offset_t	WriteFile (const std::shared_ptr< Linker::Writer > &wr) const override
	Stores data in memory to file.

void	Dump (Dumper::Dumper &dump) const override
	Display file contents in a nice manner.

void	GenerateModule (Linker::Module &module) const override
	Loads the information into a module object, a convenience method when there is a single module generated.

Public Member Functions inherited from Linker::Format
	Format (offset_t file_offset=0)

virtual void	Clear ()
	Resets all fields to their default values, deallocate memory.

virtual void	SetFileOffset (offset_t new_offset)
	Attempts to alter the offset to the first byte of the format from the beginning of the file.

offset_t	ImageSize () const override
	Retrieves the offset of the byte after the last one belonging to this format from the first one.

Public Member Functions inherited from Linker::Contents
virtual std::shared_ptr< const Image >	AsImage () const
	Retrieves a randomly accessible image.

std::shared_ptr< Image >	AsImage ()
	Retrieves a randomly accessible image.

Public Member Functions inherited from Linker::InputFormat
virtual void	SetupOptions (std::shared_ptr< OutputFormat > format)
	Initializes the reader for linking purposes.

virtual void	ProduceModule (ModuleCollector &linker, const std::shared_ptr< Reader > &rd, std::string file_name)
	Reads a file and loads the information into a module object.

virtual void	ProduceModule (Module &module, const std::shared_ptr< Reader > &rd)
	Reads a file and loads the information into a module object, a convenience method when there is a single module generated.

virtual void	GenerateModule (ModuleCollector &linker, std::string file_name, bool is_library=false) const
	Loads the information into a module object.

virtual bool	FormatProvidesSegmentation () const
	Whether the format enables multiple x86 segments.

virtual bool	FormatRequiresDataStreamFix () const
	Whether the generated file might contain bugs that require fixing.

virtual bool	FormatProvidesTransitionVectors () const
	Whether the format supports generating transition vectors.

virtual bool	FormatProvidesResources () const
	Whether the format supports resources.

virtual bool	FormatProvidesLibraries () const
	Whether the format enables importing/exporting libraries.

virtual bool	FormatProvidesEntryTable () const
	Whether the format supports a structure containing addresses of methods.

Static Public Member Functions
static std::shared_ptr< OMF96Format >	ReadOMFFile (const std::shared_ptr< Linker::Reader > &rd)
	Parses an OMF96 file.

static void	DumpAddFields (const Record record, Dumper::Dumper &dump, Dumper::Region &region, const OMF96Format omf, const Module *mod, size_t record_index, Dumper::display_option &options)

Static Public Member Functions inherited from OMF::OMFFormat
static std::string	ReadString (const std::shared_ptr< Linker::Reader > &rd, size_t max_bytes=size_t(-1))
	Reads a string prefixed with a length byte.

static void	WriteString (const std::shared_ptr< ChecksumWriter > &wr, std::string text)
	Writes a string prefixed with a length byte.

static index_t	ReadIndex (const std::shared_ptr< Linker::Reader > &rd)
	Parses a 1 or 2 byte index value.

static void	WriteIndex (const std::shared_ptr< ChecksumWriter > &wr, index_t index)
	Produces a 1 or 2 byte index value.

static size_t	IndexSize (index_t index)
	Determines if the index value requires 1 or 2 bytes to store.

static std::shared_ptr< OMFFormat >	ReadOMFFile (const std::shared_ptr< Linker::Reader > &rd)
	Attempts to parse an OMF file, whether OMF80, OMF86, OMF51 or OMF96.

Public Attributes
std::vector< std::shared_ptr< Record > >	records
	The ordered collection of records contained in the file.

std::vector< Module >	modules
	List of modules appearing in an OMF file, typically only one for an object file.

Public Attributes inherited from OMF::OMFFormat
offset_t	file_size = 0
	Used to calculate record offsets when generating OMF file.

Public Attributes inherited from Linker::Format
offset_t	file_offset
	The offset of the first byte used by this format in the file it is stored in.

Static Public Attributes
static const std::map< offset_t, std::string >	RecordTypeNames

static constexpr segment_id_t	CodeSegment = 0

static constexpr segment_id_t	DataSegment = 1

static constexpr segment_id_t	RegisterSegment = 2

static constexpr segment_id_t	OverlaySegment = 3

static constexpr segment_id_t	StackSegment = 4

static constexpr segment_id_t	DynamicSymbol = 5

static constexpr segment_id_t	NullSegment = 6

static constexpr segment_id_t	SegmentTypeMask = 7

static constexpr segment_id_t	FlagBasedVariable = 0x40

static constexpr segment_id_t	FlagRelocatableSegment = 0x80

Detailed Description

Intel Relocatable Object Module for the Intel MCS-96.

Member Function Documentation

◆ Dump()

void OMF96Format::Dump ( Dumper::Dumper & dump ) const

overridevirtual

Display file contents in a nice manner.

Reimplemented from Linker::Format.

◆ GenerateModule()

void OMF96Format::GenerateModule ( Linker::Module & module ) const

overridevirtual

Loads the information into a module object, a convenience method when there is a single module generated.

Reimplemented from Linker::InputFormat.

◆ ReadFile()

void OMF96Format::ReadFile ( const std::shared_ptr< Linker::Reader > & rd )

overridevirtual

Loads file into memory.

Implements Linker::Format.

◆ WriteFile()

offset_t OMF96Format::WriteFile ( const std::shared_ptr< Linker::Writer > & wr ) const

overridevirtual

Stores data in memory to file.

Implements Linker::Format.

Member Data Documentation

◆ RecordTypeNames

const std::map< offset_t, std::string > OMF96Format::RecordTypeNames

static

Initial value:

=
{
    { OMF96Format::ModuleHeader, "Module header record" },
    { OMF96Format::ModuleEnd, "Module end record" },
    { OMF96Format::Content, "Content record" },
    { OMF96Format::LineNumbers, "Line numbers record" },
    { OMF96Format::BlockDefinition, "Block definition record" },
    { OMF96Format::BlockEnd, "Block end record" },
    { OMF96Format::EndOfFile, "End of file record" },
    { OMF96Format::ModuleAncestor, "Module ancestor record" },
    { OMF96Format::LocalSymbols, "Local symbols record" },
    { OMF96Format::TypeDefinition, "Type definition record" },
    { OMF96Format::PublicDefinitions, "Public definitions record" },
    { OMF96Format::ExternalDefinitions, "External definitions record" },
    { OMF96Format::SegmentDefinitions, "Segment definitions record" },
    { OMF96Format::Relocations, "Fixup record" },
    { OMF96Format::LibraryModuleLocations, "Library module locations record" },
    { OMF96Format::LibraryModuleNames, "Library module names record" },
    { OMF96Format::LibraryDictionary, "Library dictionary record" },
    { OMF96Format::LibraryHeader, "Library header record" },
}

The documentation for this class was generated from the following files:

src/format/omf.h
src/format/omf.cc
