OMF::OMF51Format Class Reference

Intel Relocatable Object Module for the Intel MCS-51. More...

#include <omf.h>

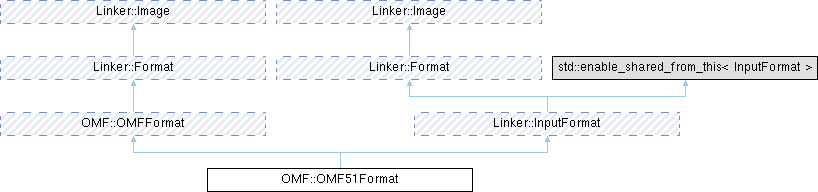

Inheritance diagram for OMF::OMF51Format:

Classes
class	DebugItemsRecord
class	ExternalDefinition
class	ExternalDefinitionsRecord
class	FixupRecord
class	Module
class	ModuleEndRecord
class	ModuleHeaderRecord
class	PublicSymbolsRecord
class	ScopeDefinitionRecord
class	SegmentDefinition
class	SegmentDefinitionsRecord
class	SegmentInfo
class	SymbolDefinition
class	SymbolInfo

Public Types
enum	record_type_t : uint8_t {   ModuleHeader = OMF80Format::ModuleHeader , ModuleEnd = OMF80Format::ModuleEnd , Content = OMF80Format::Content , Fixups = 0x08 ,   SegmentDefinitions = 0x0E , ScopeDefinition = 0x10 , DebugItems = 0x12 , PublicDefinitions = OMF80Format::PublicDefinitions ,   ExternalDefinitions = OMF80Format::ExternalDefinitions , LibraryModuleLocations = OMF80Format::LibraryModuleLocations , LibraryModuleNames = OMF80Format::LibraryModuleNames , LibraryDictionary = OMF80Format::LibraryDictionary ,   LibraryHeader = OMF80Format::LibraryHeader }
enum	segment_type_t : uint8_t {   SegmentCode = 0 , SegmentXData = 1 , SegmentData = 2 , SegmentIData = 3 ,   SegmentBit = 4 , SegmentNone = 5 }
enum	alignment_t : uint8_t {   AlignAbsolute = 0 , AlignUnit = 1 , AlignBitAddressable = 2 , AlignFitsPage = 3 ,   AlignFitsBlock = 4 , AlignPage = 5 }
using	Record = OMFFormat::Record<record_type_t, OMF51Format, Module>
using	UnknownRecord = OMFFormat::UnknownRecord<record_type_t, OMF51Format, Module>
using	EmptyRecord = OMFFormat::EmptyRecord<record_type_t, OMF51Format, Module>
using	ContentRecord = OMFFormat::ContentRecord<record_type_t, OMF51Format, Module>
using	LibraryHeaderRecord = OMFFormat::LibraryHeaderRecord<record_type_t, OMF51Format, Module>
using	LibraryModuleNamesRecord = OMFFormat::LibraryModuleNamesRecord<record_type_t, OMF51Format, Module>
using	LibraryModuleLocationsRecord = OMFFormat::LibraryModuleLocationsRecord<record_type_t, OMF51Format, Module>
using	LibraryDictionaryRecord = OMFFormat::LibraryDictionaryRecord<record_type_t, OMF51Format, Module>
Public Types inherited from OMF::OMFFormat
typedef uint16_t	index_t
	An index referring to an element or definition in the file, typically stored as 1 or 2 bytes, used for OMF86 and OMF96.

Public Member Functions
std::shared_ptr< Record >	ReadRecord (Linker::Reader &rd)
	Parses and returns an instance of the next record.
void	ReadFile (Linker::Reader &rd) override
	Loads file into memory.
offset_t	WriteFile (Linker::Writer &wr) const override
	Stores data in memory to file.
void	Dump (Dumper::Dumper &dump) const override
	Display file contents in a nice manner.
void	GenerateModule (Linker::Module &module) const override
	Loads the information into a module object, a convenience method when there is a single module generated.
Public Member Functions inherited from Linker::Format
	Format (offset_t file_offset=0)
virtual void	Clear ()
	Resets all fields to their default values, deallocate memory.
offset_t	ImageSize () const override
	Retrieves size of stored data.
offset_t	WriteFile (Writer &wr, offset_t count, offset_t offset=0) const override
	Writes data of non-zero filled sections.
Public Member Functions inherited from Linker::Image
virtual std::shared_ptr< const ActualImage >	AsImage () const
	Retrieves a randomly accessible image.
std::shared_ptr< ActualImage >	AsImage ()
	Retrieves a randomly accessible image.
Public Member Functions inherited from Linker::InputFormat
virtual void	SetupOptions (std::shared_ptr< OutputFormat > format)
	Initializes the reader for linking purposes.
virtual void	ProduceModule (ModuleCollector &linker, Reader &rd, std::string file_name)
	Reads a file and loads the information into a module object.
virtual void	ProduceModule (Module &module, Reader &rd)
	Reads a file and loads the information into a module object, a convenience method when there is a single module generated.
virtual void	GenerateModule (ModuleCollector &linker, std::string file_name, bool is_library=false) const
	Loads the information into a module object.
virtual bool	FormatProvidesSegmentation () const
	Whether the format enables multiple x86 segments.
virtual bool	FormatRequiresDataStreamFix () const
	Whether the generated file might contain bugs that require fixing.
virtual bool	FormatProvidesResources () const
	Whether the format supports resources.
virtual bool	FormatProvidesLibraries () const
	Whether the format enables importing/exporting libraries.

Static Public Member Functions
static std::shared_ptr< OMF51Format >	ReadOMFFile (Linker::Reader &rd)
	Parses an OMF51 file.
static void	DumpAddFields (const Record *record, Dumper::Dumper &dump, Dumper::Region &region, const OMF51Format *omf, const Module *mod, size_t record_index)
Static Public Member Functions inherited from OMF::OMFFormat
static std::string	ReadString (Linker::Reader &rd, size_t max_bytes=size_t(-1))
	Reads a string prefixed with a length byte.
static void	WriteString (ChecksumWriter &wr, std::string text)
	Writes a string prefixed with a length byte.
static index_t	ReadIndex (Linker::Reader &rd)
	Parses a 1 or 2 byte index value.
static void	WriteIndex (ChecksumWriter &wr, index_t index)
	Produces a 1 or 2 byte index value.
static size_t	IndexSize (index_t index)
	Determines if the index value requires 1 or 2 bytes to store.
static std::shared_ptr< OMFFormat >	ReadOMFFile (Linker::Reader &rd)
	Attempts to parse an OMF file, whether OMF80, OMF86, OMF51 or OMF96.

Public Attributes
std::vector< std::shared_ptr< Record > >	records
	The ordered collection of records contained in the file.
std::vector< Module >	modules
	List of modules appearing in an OMF file, typically only one for an object file.
Public Attributes inherited from OMF::OMFFormat
offset_t	file_size = 0
	Used to calculate record offsets when generating OMF file.
Public Attributes inherited from Linker::Format
offset_t	file_offset

Static Public Attributes
static const std::map< offset_t, std::string >	RecordTypeNames
static constexpr uint8_t	SegmentAbsolute = 0

Detailed Description

Intel Relocatable Object Module for the Intel MCS-51.

Member Enumeration Documentation

alignment_t

enum OMF::OMF51Format::alignment_t : uint8_t

Enumerator
AlignAbsolute	Non-relocatable.
AlignUnit	Byte or bit alignment for SegmentBit segments.
AlignBitAddressable	Must be allocated within the bit addressable part of SegmentData.
AlignFitsPage	Must fit a 256 byte page.
AlignFitsBlock	Must fit a 256 byte block.
AlignPage	Align to a 256 byte page boundary.

segment_type_t

enum OMF::OMF51Format::segment_type_t : uint8_t

Enumerator
SegmentCode	64 KiB read-only memory
SegmentXData	64 KiB read-write memory
SegmentData	256 B internal RAM that is accessible via direct addressing, first 128 B shared with SegmentIData
SegmentIData	256 B internal RAM that is accessible via indirect addressing, first 128 B shared with SegmentData
SegmentBit	256 bit address space, part of SegmentData
SegmentNone	Not a segment, but a symbol with this segment type is treated as a value.

Member Function Documentation

Dump()

void OMF51Format::Dump ( Dumper::Dumper & dump ) const

overridevirtual

Display file contents in a nice manner.

Reimplemented from Linker::Format.

GenerateModule()

void OMF51Format::GenerateModule ( Linker::Module & module ) const

overridevirtual

Loads the information into a module object, a convenience method when there is a single module generated.

Reimplemented from Linker::InputFormat.

ReadFile()

void OMF51Format::ReadFile ( Linker::Reader & rd )

overridevirtual

Loads file into memory.

Implements Linker::Format.

WriteFile()

offset_t OMF51Format::WriteFile ( Linker::Writer & wr ) const

overridevirtual

Stores data in memory to file.

Implements Linker::Format.

Member Data Documentation

RecordTypeNames

const std::map< offset_t, std::string > OMF51Format::RecordTypeNames

static

Initial value:

=
{

}

---

The documentation for this class was generated from the following files:

• src/format/omf.h
• src/format/omf.cc
